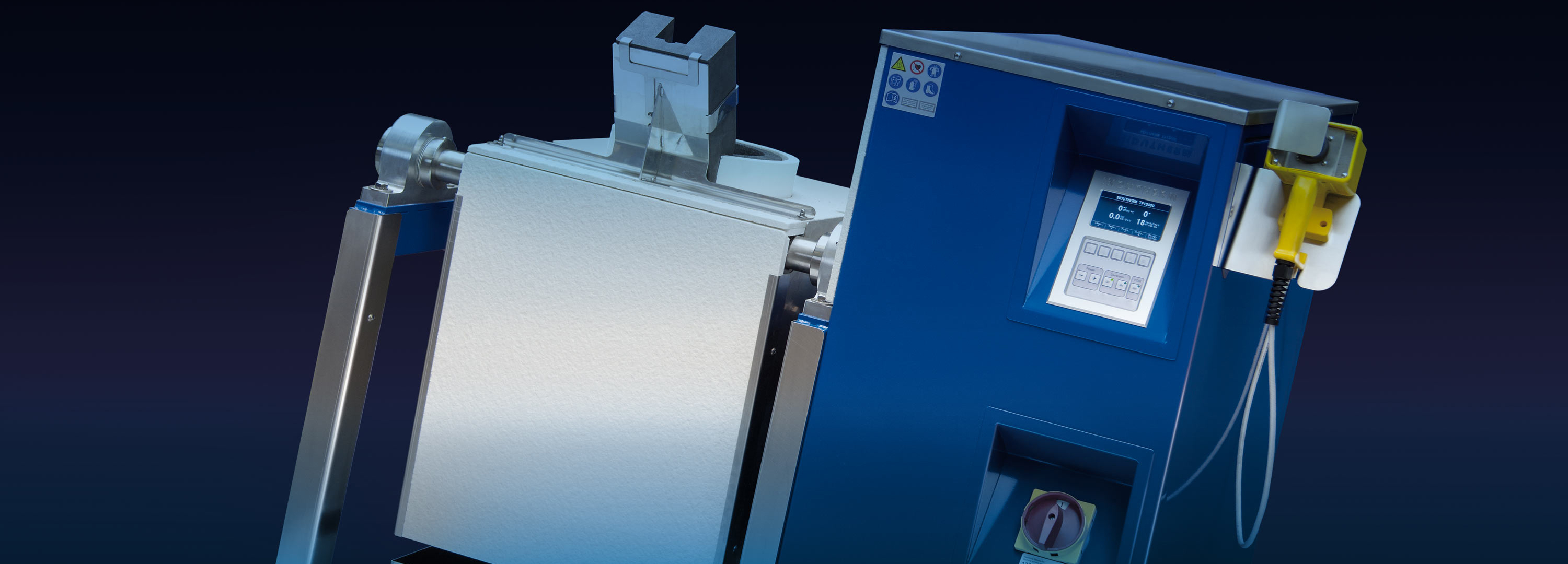

TF-Series


Powerful, efficient and safe

The TF series tilting ovens are equipped with 32-bit induction generators, which depending on the version Deliver output power from 15 to 60 kW. Thanks to the low-frequency design, excellent mixing is achieved even with large quantities. All Versions are controlled via an LCD display with full text display.

Effiziente Wärmedämmung und elektromagnetische Abschirmung sorgen für einen hohen Wirkungsgrad. Von Kunden durchgeführte Vergleichstests haben ergeben, dass die TF 12000 eine höhere Produktivität aufweist als ein Konkurrenzmodell mit der doppelten Leistung und entsprechend doppelten Energiekosten.


Data Overview of TF-Series

■ standard equipment, ○ optional, - not available
TF-2000 TF-Series TF-4000 TF-4000 HTC TF-6000 TF-Series TF-12000 TF-12000 HTC TF-28000
Temperature max. 1500° C 1850° C 1500° C 1850° C 1500° C 1850° C 1500° C 1850° C 1500° C
Power max. / electrical connection 20 kW (3x400 V) 20 kW (3x400 V) 30 kW (3x400 V) 30 kW (3x400 V) 40 kW (3x400 V) 40 kW (3x400 V) 40 kW (3x400 V) 60 kW (3x400 V) 60 kW (3x400 V)
Control system by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout
Programs 20 20 20 20 100 100 100 100 100
Tilting by lever - - - - -
Tilting with motor drive (remote control) - - - -
Temp. measurement by thermocouple
Temperature measurement equipped with an optical pyrometer
RS 232, Ethernet, USB interface, diagnostic system
GSM-modem for remote service
DMS
InduthermCloud
iThermControl
Protective gas flush to avoid oxidation
Vacuum pump
Moveable table (with customized molds)
Hood for smoke vent

*real capacity for casting / useful volume

All machine descriptions and technical data published on this site make no claim to be complete. They are subject to change and therefore they are not basis of contract.
