AUG-Series


For numerous applications and a wide spectrum of alloys

The AUG machines are designed for numerous applications in the most diversity thanks to their narrow particle size distribution and high yield and the possibility of flexible usage provided by different nozzle systems. They are generally suitable for gas atomization of a wide spectrum of alloys; such as those based on Cu, Au, Ag, Sn, or Zn (standard versions) as well as Fe, Co, Ni, Pd, or Pt (high-temperature versions HT, HTC, and HTC+). The inductive heating takes place in graphite crucibles (up to 1600° C) or in ceramic crucibles: HT up to 1750º C, HTC up to 1850º C, HTC+ up to 2000º C. The crucible volumes reach from ~1.5 l to ~25 l. For the production of reactive materials like Al or Mg, please ask us for our solutions.

Powder characteristics and particle sizes for every request

To obtain specific metal powder characteristics and particle sizes, the AUG machines work with different easy-to-change nozzle systems: free-fall and close-coupled atomization nozzles. Optionally, an anti-satellite system for highest sphericity is available.

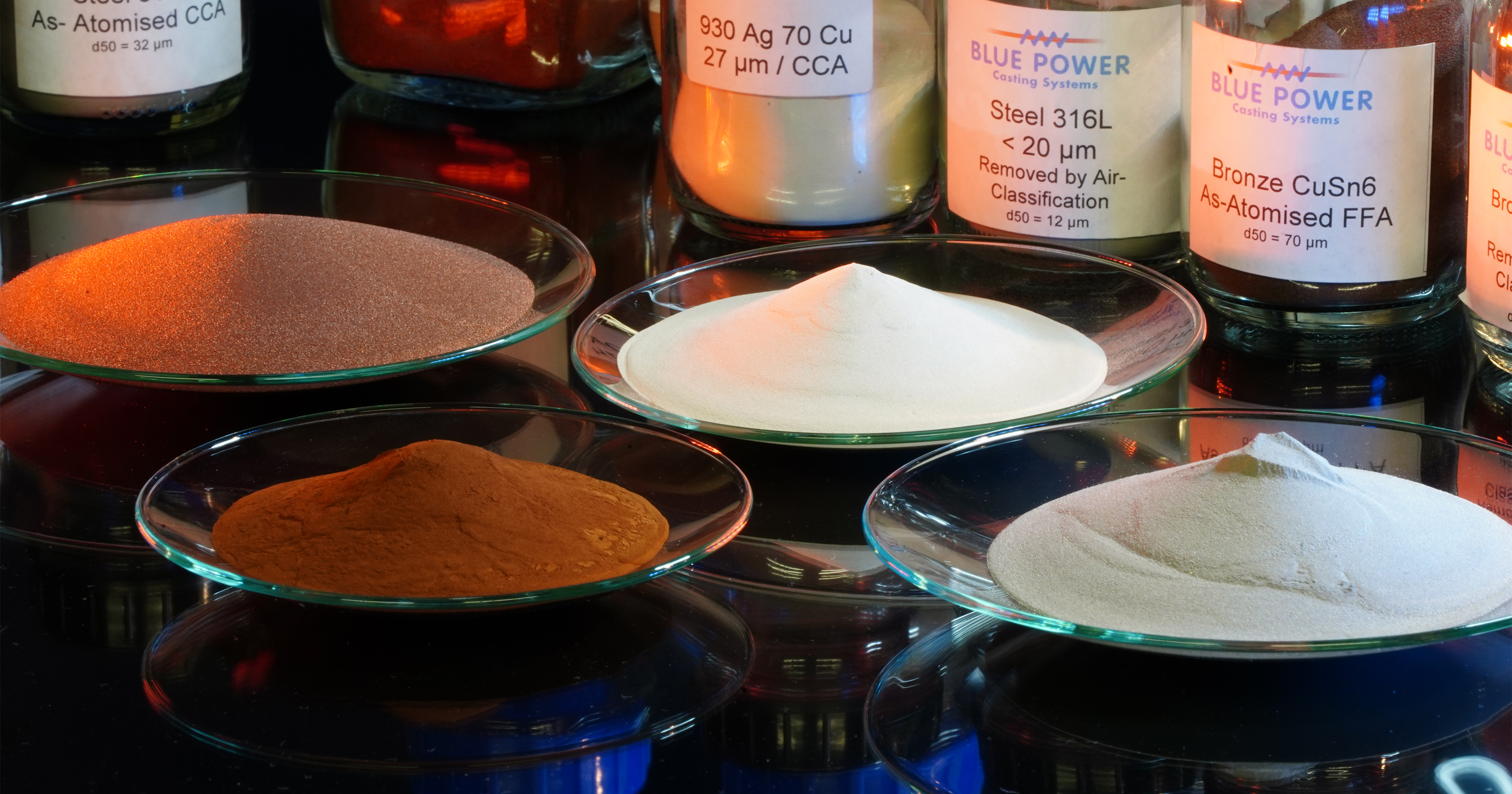

Our gas atomizers produce spherical, flowable metal powders with mean particle sizes between ~1 and 200 µm for e.g. additive manufacturing, soldering or foam sintering processes, as well as MIM and other powder metallurgy procedures.

Oxidation-free processing for maximum cleanliness

The AUG and as well the AUW machines offer the possibility of oxidation-free processing in the closed-chamber machine by means of de-gassing, vacuum and protective gas features to realize highest cleanliness. Oxygen sensor values below 0.5 ppm can be achieved reproducibly.

The Gas Atomizer – at a glance:

  • Very simple handling via LCD-Display and neatly arranged control panel
  • Flexible and economic production of small to medium metal powder batches
  • Easy-to-clean concept: minimum metal loss and cross-contamination
  • High powder yield over a particularly wide particle size range
  • Particularly high process stability due to optimized nozzle systems
  • Anti-oxidation features

Data Overview of AUG-Series

■ standard equipment, ○ optional, - not available
AUG-Series AUG-Series AUG-Series AUG-Series AUG-Series
Generator kw 12 20 30 40-60 60+
Temperature max. 2000° C 2000° C 2000° C 1850° C 1500° C
Volume in kg bronze** 1 (○ 1,5 od. 4) 9 22 80 180
Volume in kg steel (HTC) ** 2,5 8 22 90 on request
Crucible Volume in l* 0,25 - 0,7 1,5-1,7 3,4-3,9 12,0-14,0 25,0
Single cycle time 1 - 1,5h 1,5 - 2h 3 - 4h 4 - 5h 5 - 6h

*Liquid metal up to top level of the crucible

** Average capacities. Quantity may be increased by optimizing metal load using feeding systems.

All machine descriptions and technical data published on this site make no claim to be complete. They are subject to change and therefore they are not basis of contract.

Other Advantages of AUG-Series

The DDP system is ensuring a constant and controllable metal mass flow, and therewith gas-to-metal ratio, independent from the melt level in the crucible.

Find out more about AUG-Series

Gas separation by treatment in cyclones, minimum risk of powder agglomeration

Water-cooled parts like spray tower and cyclone for fast cooling of the atomized material, optionally in combination with a passivation feature to avoid agglomerations especially of soft and high purity materials like Cu, Ag, Au, and/or in case of very fine powders (diam. ~< 20 µm).
