THE NEW VC SERIES – THE NEW ERA OF CASTING TECHNOLOGY
The NEW Indutherm VC Series Vacuum Pressure Casting Machines.
The new State of the Art in Precision & Productivity.
Engineered from the ground up, the new VC series unites groundbreaking innovation with over 30 years of expertise in casting technology. Designed for maximum automation, it delivers outstanding process reliability, enhanced operator safety, and seamless integration into your digital production environment. Future-focused and performance-driven, the VC series sets new benchmarks and defines the next generation of casting technology.
High Level of Automation
- Exceptionally simple and efficient operation
- Precision Flow Control & Variable Overpressure System (Pat.) for high process stability and consistent quality
Maximum Comfort & Safety
- Automatic bell lock system, vacuum chamber opening via foot sensor
- Sensor driven diagnostic system
- Cyber safety according to EU Machinery Regulation (2023/1230)
Individualization & Process Management
- Production Data Matching: Scan flask and material IDs to match them with your production ID
- High Connectivity: Seamless integration with other machinery and production systems via OPC UA and Modbus TCP / via Standard Industrial Communication Protocols
- Advanced Casting Program Editor: Customized process flows e.g. with integrated heating ramps for precise control
- Multilingual Multi-user Management
- Configuration Transfer: Records all process parameters and user inputs, exportable via USB or digital communication
Performance & Flexibility
- Up to 1,600° C, HTC version up to 2,100° C
- Flasks up to ø 130x300 mm h,
optional up to ø 160x400 mm h - Different crucibles sizes up to 10.5 kg Au 18k, up to 5 kg Pt (HTC version)
- Overpressure up to 3.0 bar Casting cycles down to under 3 minutes!
- Casting cycles down to under 3 minutes!

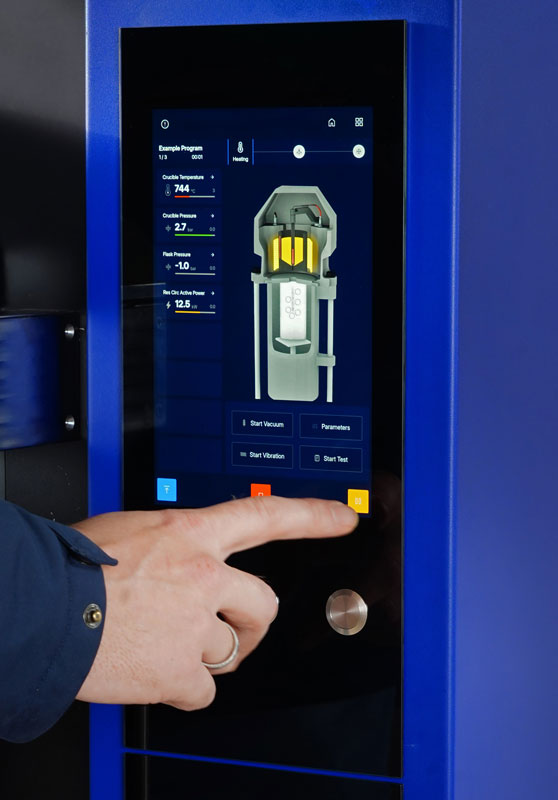

Visualized process flow

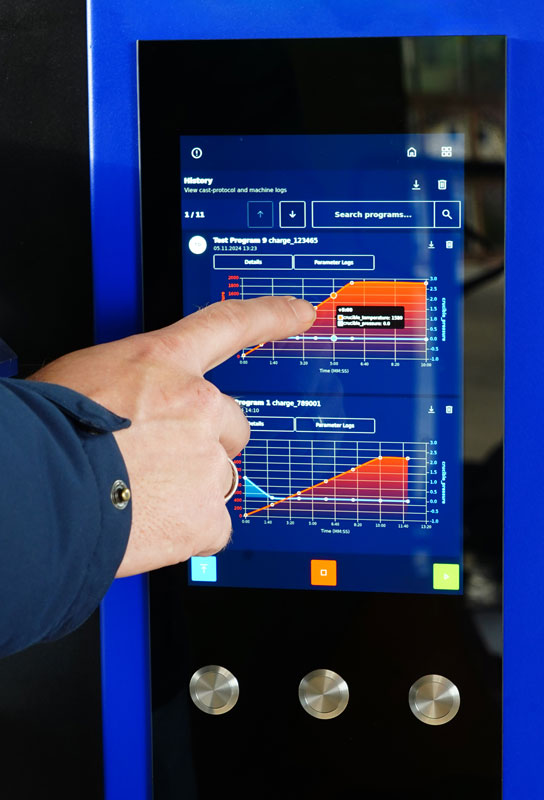

Individual setting of heating ramps
Precision Flow Control & Variable Overpressure System

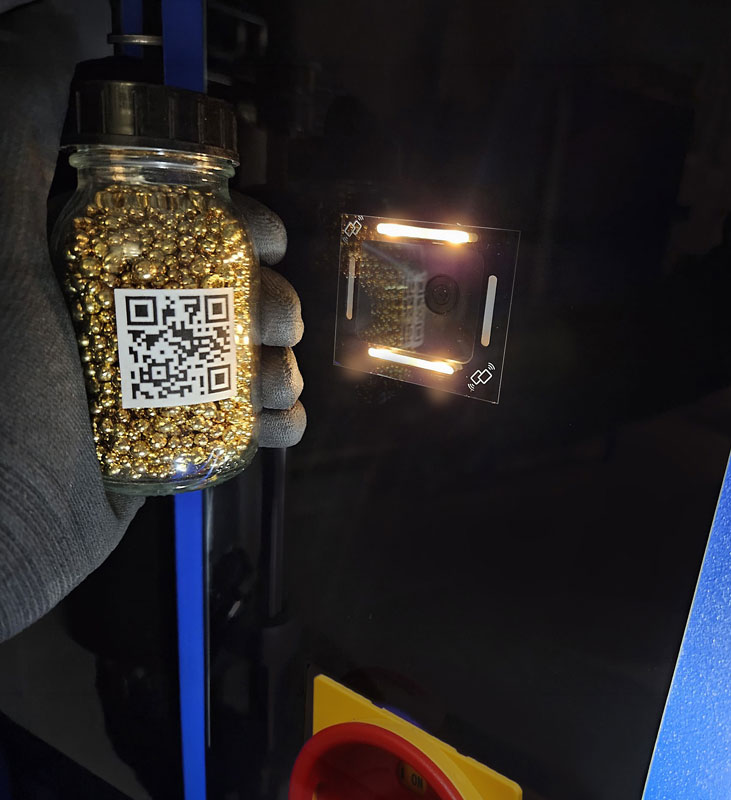

Production Data Matching: Scan flask and material IDs to match them with your production ID

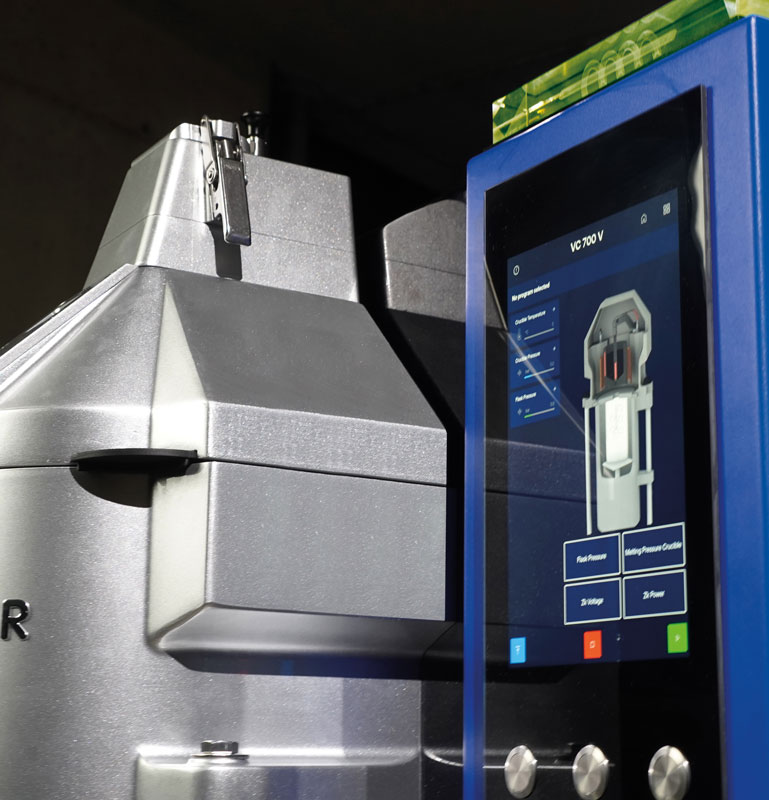

VC 700 V with feeder for automatic refill without the need to open the melting chamber

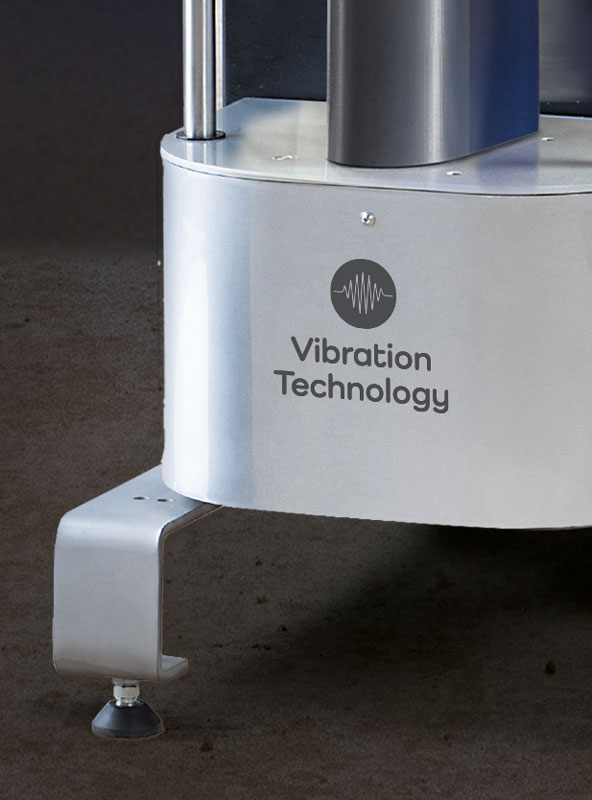

Sweep Mode Vibration Technology for optimized form filing and maximum casting quality
